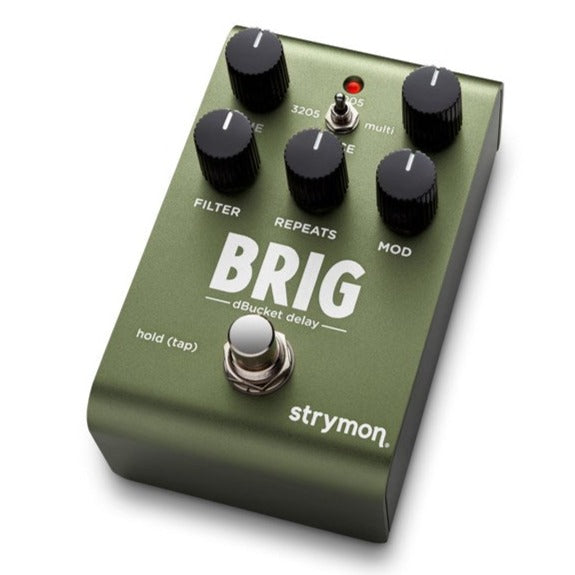

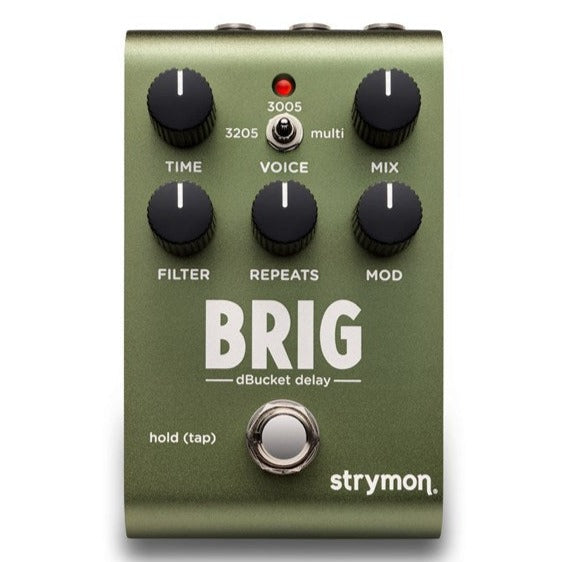

Strymon Brig dBucket Delay

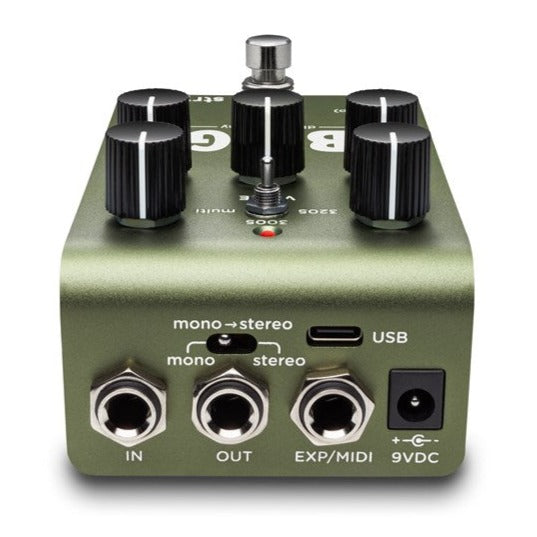

Ins, Outs, and Switches

• High impedance ultra low-noise discrete Class A JFET TRS stereo input

• Low impedance TRS stereo output

• Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection

• USB jack for controlling via MIDI from a computer or for performing firmware updates

Audio Quality

• Premium JFET analog front end

• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality

• 520MHz ARM Superscalar processor

• 32-bit floating point processing

• 20Hz to 20kHz frequency response

• Audio Input Impedance: 1M Ohm

• Audio Output Impedance: 100 Ohm

• Typical signal to noise ratio: 116dB

Other Features

• Strong and lightweight anodized aluminum chassis

• Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA (power supply NOT included)
• Dimensions:
  4.6” deep x 2.7” wide x 2.5” tall
  11.7 cm deep x 6.9 cm wide x 6.4 cm tall

• Designed and built in the USA
