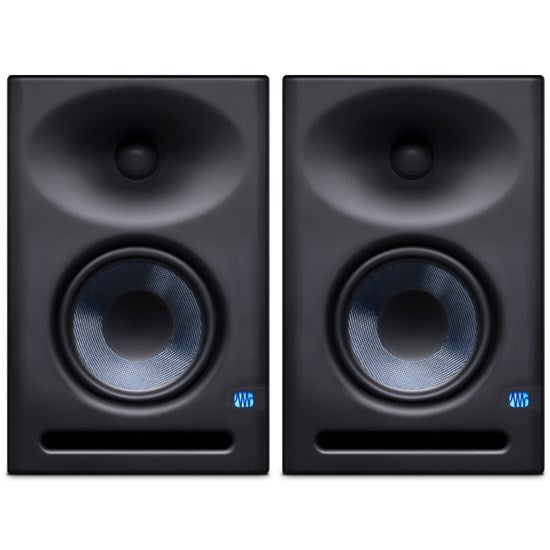

Presonus Eris E7XT | Studio Monitors
With their smooth, accurate frequency response; powerful amplification with tons of headroom; and acoustic tuning functions that ensure you always get the best sound... it's no wonder that the original Eris®-series studio monitors have been a runaway hit since their introduction. The Eris E7 XT builds on the Eris XT-series adding big, controlled bass in a compact form that will fit into a studio of nearly any size. Deep lows and a wide, more controlled sweet spot (thanks to its EBM waveguide design) mean that our best-selling studio monitors just got even better.
Studio speakers with a wide sweet spot.
We outfitted the Eris XT studio monitors with a new EBM (Elliptical Boundary Modeled) waveguide designed by none other than Hugh Sarvis of WorxAudio, the mind behind our award-winning CDL loudspeakers and lauded R-Series monitors. The result? A superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. It’s ideal for group listening and collaboration—while narrow vertical dispersion reduces reflections from your desk. Silk-dome tweeters ensure snappy, accurate transient reproduction.
Technical Specifications
Inputs
|
|
|
1- Balanced XLR |
|
1- Balanced ¼” TRS |
|
1- Unbalanced RCA |
Performance
|
|
Frequency Response |
42 Hz - 20 kHz |
Crossover Frequency |
2.5 kHz |
LF Amplifier Power |
75W |
HF Amplifier Power |
65W |
Peak SPL (@ 1 meter) |
104 dB |
LF Driver |
6.5” reinforced woofer |
HF Driver |
1.25” silk dome tweeter |
Input Impedance |
10 kΩ |
Dispersion |
100 degrees horizontal by 60 degrees vertical |
User Controls
|
|
Volume Range |
A-type taper |
MF Control |
-6, 0, +6 dB |
HF Control |
-6, 0, +6 dB |
Low Cut |
Flat, 80 Hz, 100 Hz |
Acoustic Space |
Flat, -2 dB, -4 dB |
Protection
|
|
|
RF interference |
|
Output-current limiting |
|
Over-temperature |
|
Turn-on/off transient |
|
Subsonic filter |
|
External mains fuse |
Power
|
|
|
100-120V ~50/60 Hz or 220-240V ~50/60 Hz |
Cabinet
|
|
|
Vinyl-laminated, medium-density fiberboard |
Physical
|
|
Width |
9.4” (240 mm) |
Depth |
9.5” (242 mm) |
Height |
14.4” (365 mm) |
Weight |
18.5 lbs (8.4 kg) |
