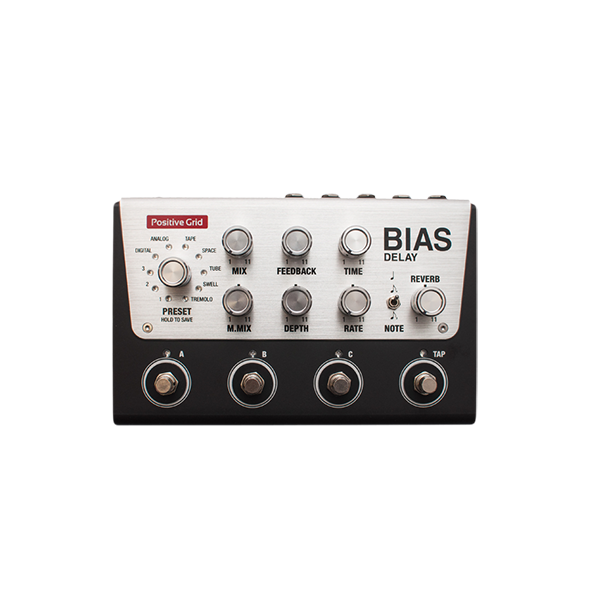

Positive Grid BIAS Delay Pedal
BIAS Delay lets you quickly and easily design thousands of custom delay pedals from scratch. Seamlessly integrated with BIAS Pedal Delay for mobile and desktop, BIAS Delay Pedal travels effortlessly between studio and stage. And of course, it’s ToneCloud-ready. Upload and share your unique delay pedals on the ToneCloud social network for guitarists, and download thousands of unique delay pedals from fellow musicians around the world.
ENDLESS DELAY CREATION
Choose among four delay types to start: Standard for pristine digital delays, Tape for saturated vintage sound, Ping Pong for cruise ship-wide echo trails, and Reverse for ear-bending backward envelopes. Manual delay times from 1 to 3000 ms dish out every kind of delay-based effect from doubling to slapback to long echoes. Sync BIAS Delay to your DAW for delay times ranging from a 32nd-note to a whole note, including dotted notes and triplets.
CUSTOM PEDAL DESIGN
Design your own custom delay pedal at component level. Saturation and analog-tone controls add density and girth to the Delay Stage’s input signal. Adjust your pedal’s virtual power source to deliver 18 volts for a relaxed, supple sound, or 6 volts. Use the Delay Stage’s treble and bass controls to shape the tone of only the delay signal from bright to midrange-y to bass-heavy. Two 8-band graphic EQs can be placed at various points along the signal chain.
PREMIUM COMPONENTS
BIAS Delay Pedal uses only the finest quality components available. The road-ready metal foot switch, the circuit board, and each knob used are all top of the line. Enrich your pedal tone with the absolute best sound quality analog and digital has to offer.
BIAS Delay seamlessly integrates with your BIAS FX mobile and desktop effects arsenals. It automatically imports your custom delay pedals into the BIAS FX pedalboard’s dual signal chains with dual BIAS amps. It also includes all of BIAS Pedal’s stock goodies, including Amp Room: six guitar amps from the rockin’ BIAS Amp to blow through.
TECHNICAL DETAILS
Built
Full metal framework for strongest built quality
Knobs
7 tone-shaping knobs plus boost for excellent hardware control
Footswitches
4 rugged metal footswitches for preset change and Tap Tempo
Instrument Input
Stereo 1/4″ TS Hi-Z Input
Expression Pedal Input
1/4″ TRS Input
Output
Stereo 1/4″ Output
MIDI
5 pin connectors for MIDI In & Thru
USB
Connect with BIAS Pedal desktop (PC & Mac) via Micro USB
Wireless
Connect with BIAS Pedal iPad
Power supply
9V DC (negative tip, 270mA required) / Micro USB cable
Dimension (H x W x D)
62.7 x 142 x 227 mm
Weight
1.3 kg
Presets
Comes with 10 default presets for each bank and able to import new ones with BIAS Pedal app
Banks
BIAS Delay provides two banks to store total 20 presets
MIDI Control
Full MIDI Implementation for much more flexible control.
Tap Tempo
Use Tap Tempo footswitch to set the BPM.
Delay Time
Up to 3000ms delay time
Note Division
Hardware comes with 3 most popular note division options: quarter note, dotted eighth note, eighth note triplets. Able to access more note options in BIAS Pedal app
Independent Reverb control
BIAS Delay provides a independent reverb knob to control additional reverberation effect
Bypass
Choose True Bypass for the pure sound quality or Buffer Bypass to buffer the signal during bypass state.
Expression Pedal
Connect with EXP. Pedal to real time control any paramater on stage.
Software
Work with BIAS Pedal (Mac, PC and iPad) for pedal customization, preset management and remote controling
USB connection
USB connection with PC & Mac
USB power supply
Able to power up the pedal with USB connection
Bluetooth
Bluetooth connectivity for BIAS Pedal iOS
ToneCloud
Share and download tones of delay pedal with other muscian around the world
