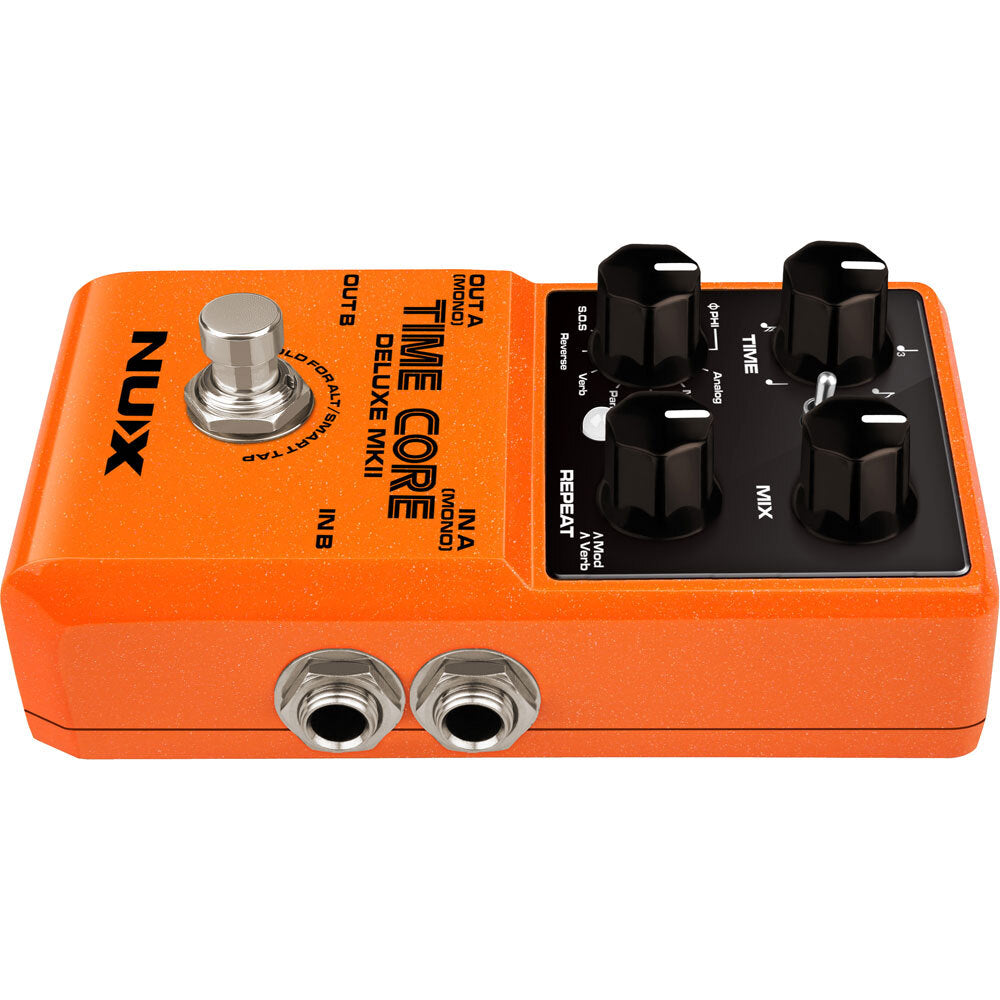

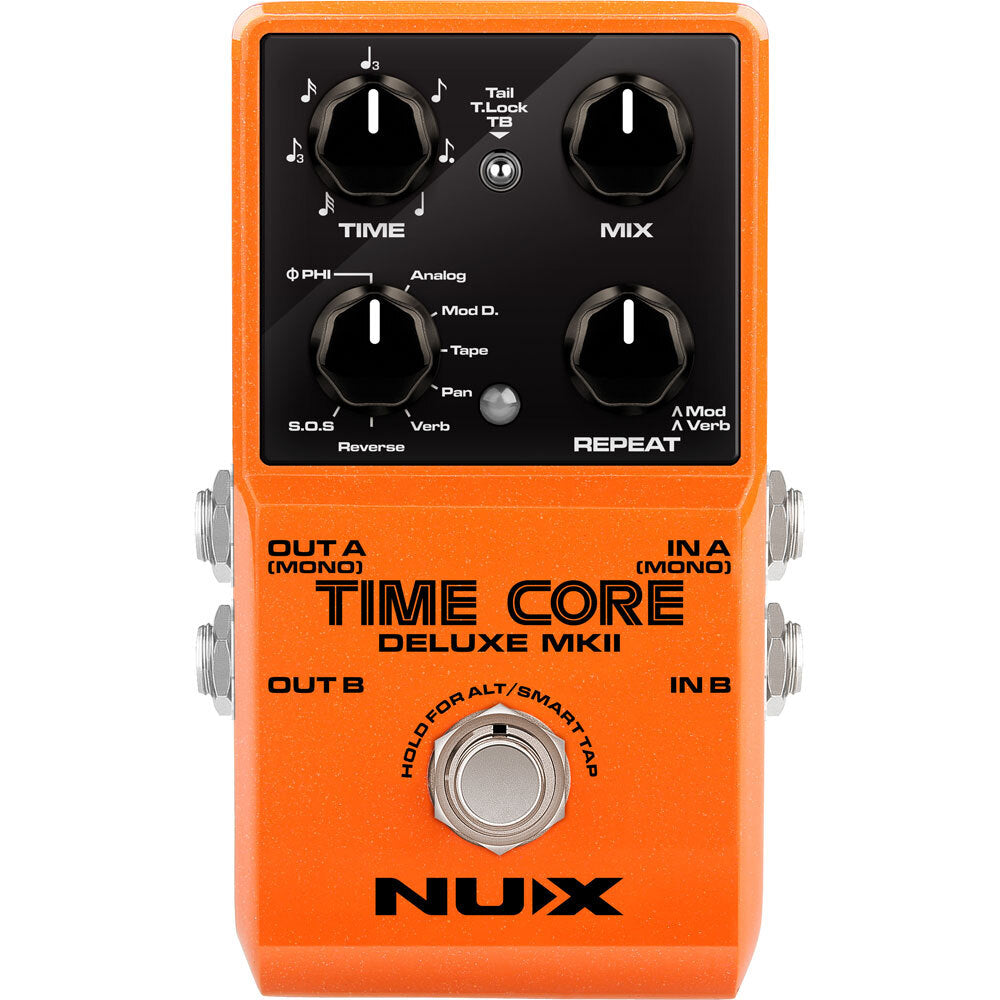

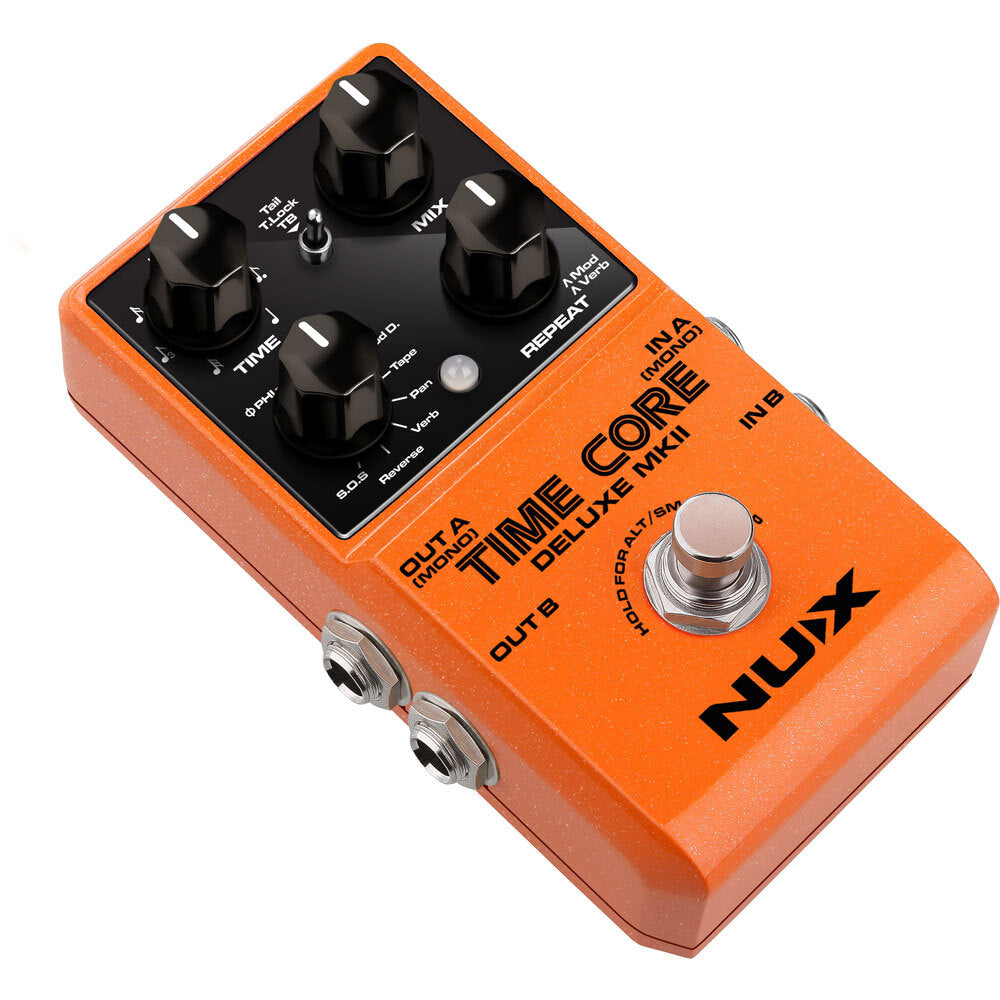

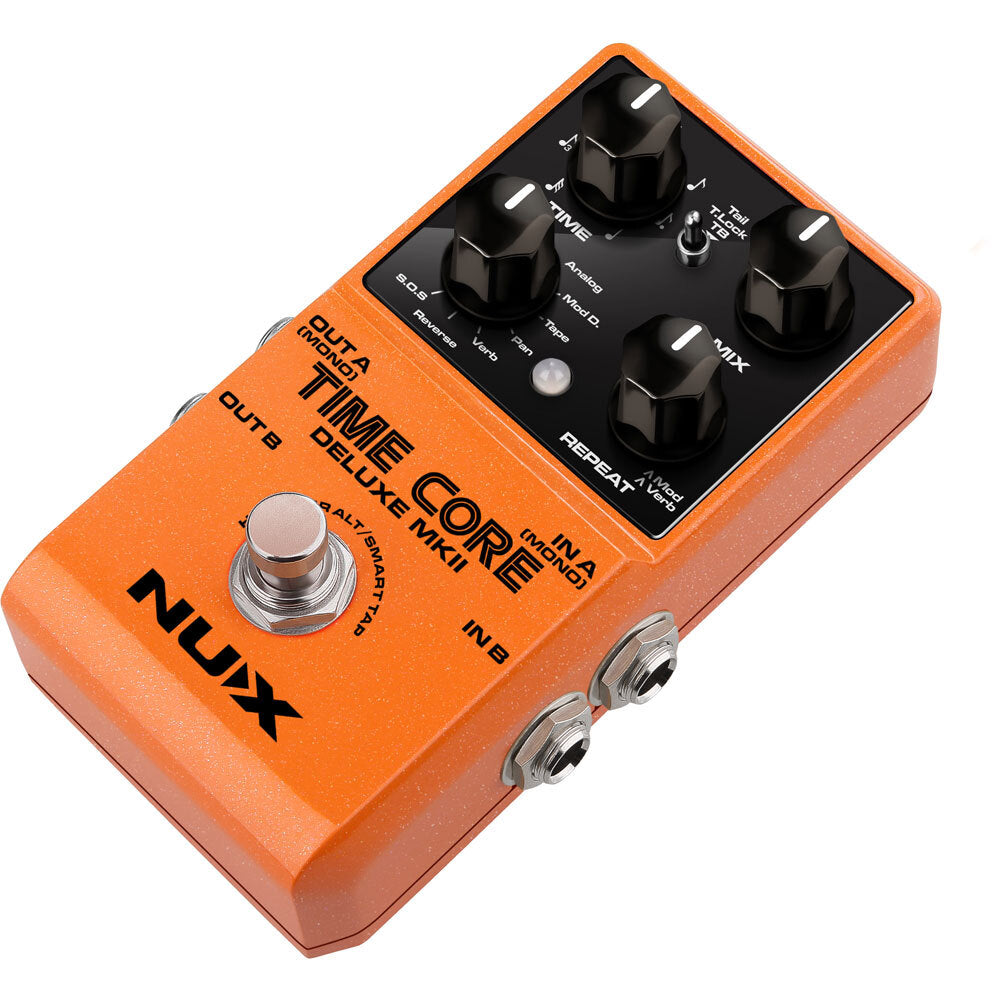

The NUX TIME CORE DELUXE MKII is a delay pedal with 7 different types and a phrase looper; including ΦPhi Digital Delay, Analog Delay, Modulation Delay, Tape Echo, Pan Delay, Verb Delay, Reverse Delay and Sound On Sound. You can switch the delay type by using the Type rotary switch.
Features
- 7 delay types in a compact enclosure.
- ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head. (80ms~1000ms)
- Analog Delay: Warm sound with natural treble decay. (40ms~403ms)
- Modulation Delay: Lush and rich chorus with digital delay. (20ms~1500ms)
- Tape Echo: High-frequency saturation and low-end decay. (55ms~552ms)
- Pan Delay: Creative natural stereo feeling. (80ms~1000ms)
- Verb Delay: Plate Reverb algorithm with Digital Delay to create an ambient atmosphere. (80ms~1000ms)
- Reverse Delay: Inspire guitarists for new ideas. (320ms~1240ms)
- S.O.S: 40 seconds stereo phrase loop.
- Sub-division with Smart Tap Tempo. (Maximum: 1580ms)
- True-bypass or Buffer-bypass(Tails).
- Supports Stereo.
- Kill Dry.
- Low power consumption. (less than 120mA)
- Analog dry signal for low noise and zero latency.
Specifications
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Dynamic Range: 104 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: less than 120mA
- Dimensions (L x W x H): 122mm x 72mm x 47mm
- Weight: 270g
