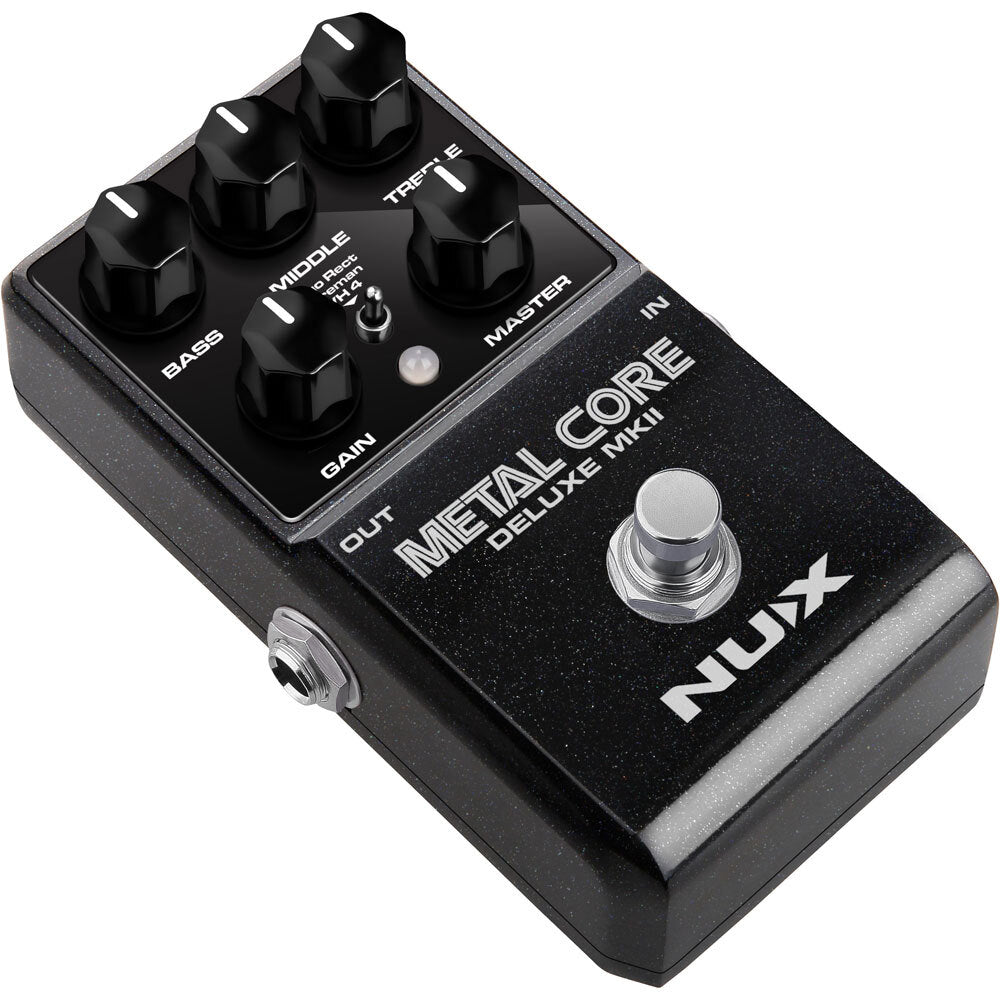

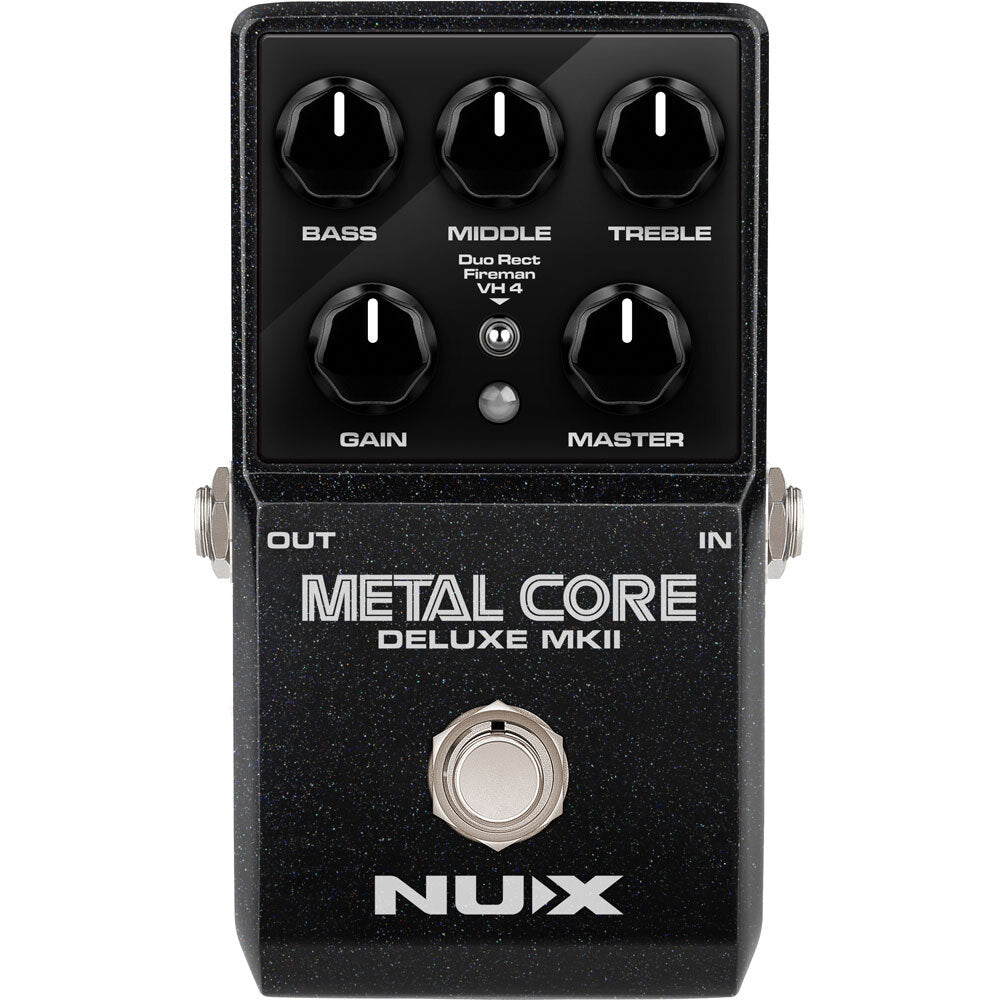

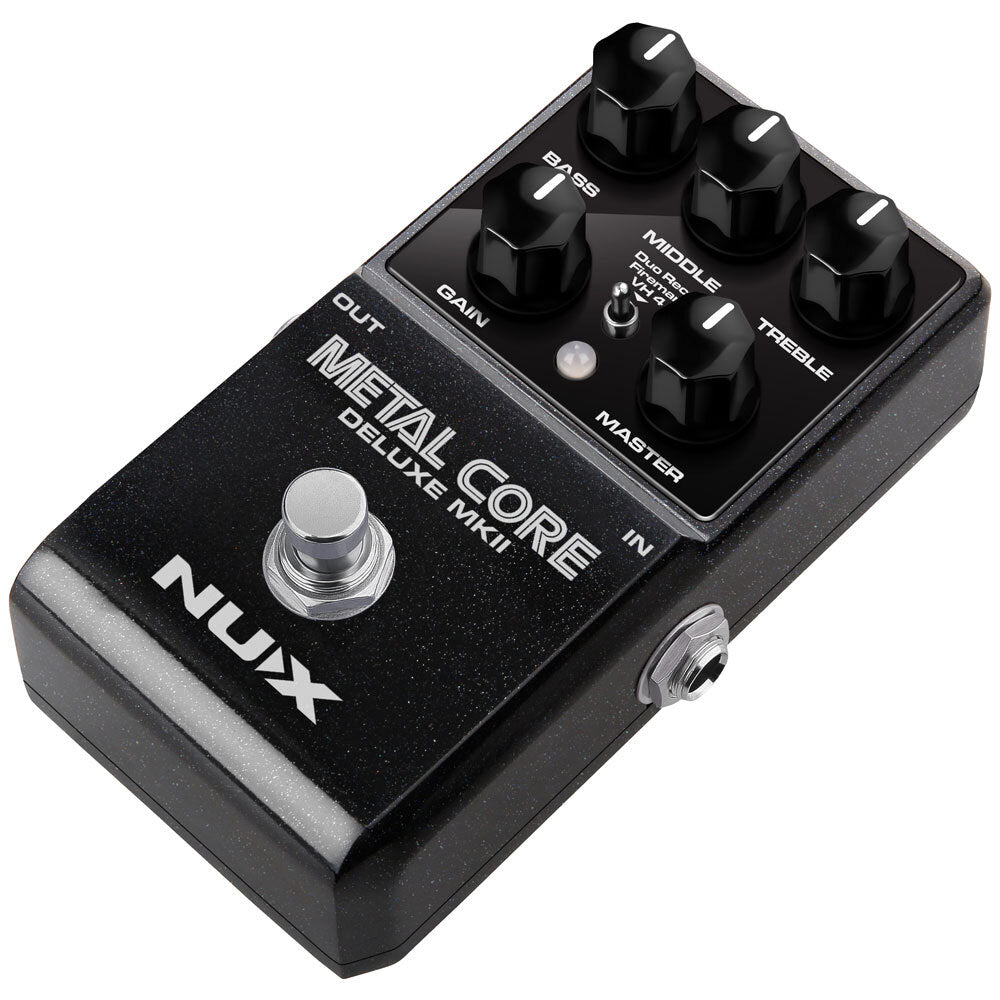

NU-X Core Series Metal Core Deluxe MK-II Distortion Effects & Preamp Pedal
Features
- 3 high gain Amp Models in a compact enclosure.
Duo Rect: Based on Mesa Boogie Dual Rectifier
Fireman: Based on Friedman BE-100
VH4: Based on Diezel VH4
- IR out for amp-less application. (512 samples resolution)
- True-bypass.
- Parameters auto saving into 3 models.
- Low power consumption. (less than 120mA)
- TSAC-HD modeling offers realistic playability and response.
Specifications
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Dynamic Range: 104 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: less than 120mA
- Dimensions (L x W x H): 122mm X 72mm X 47mm
- Weight: 270g
