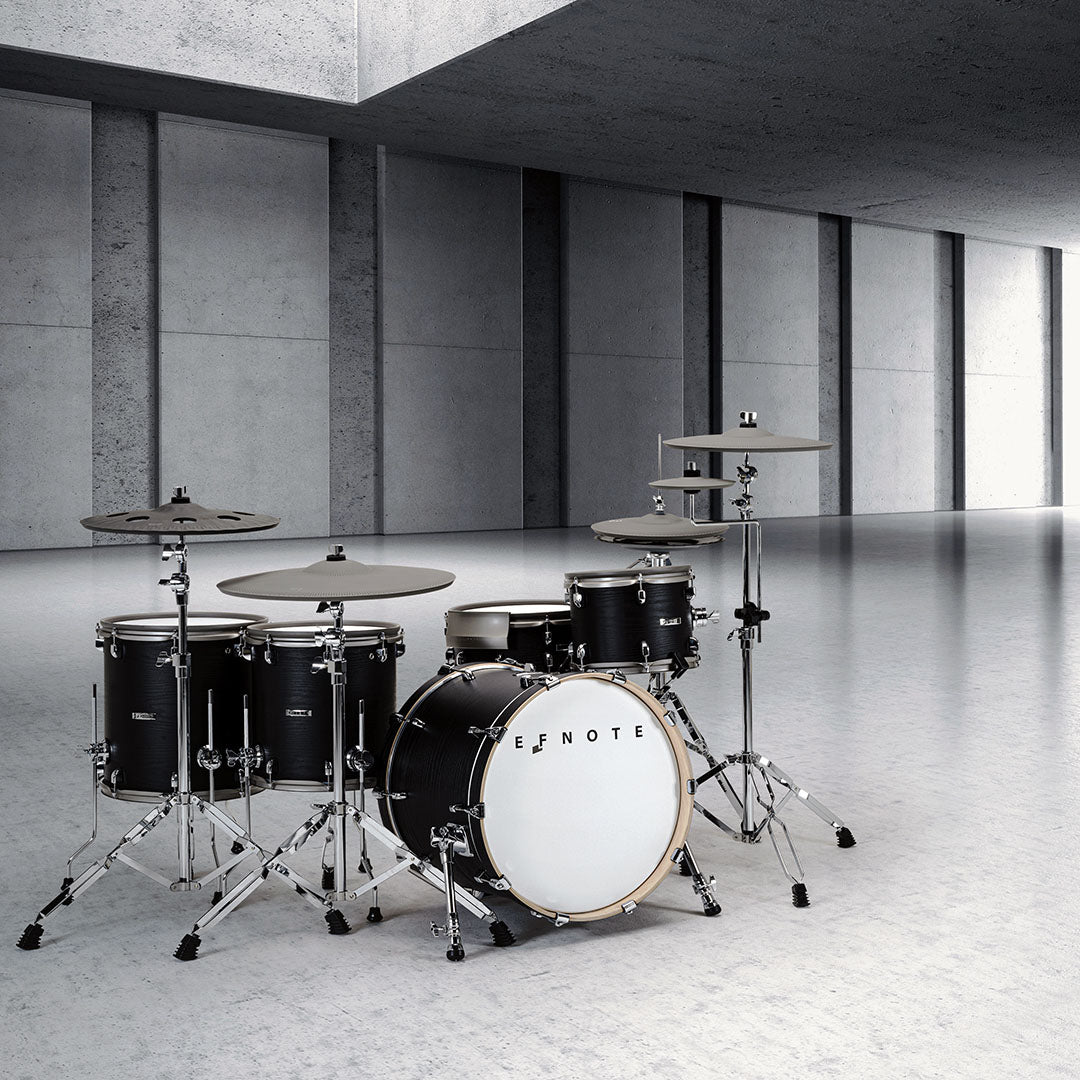

Authentic Presence
- Proves your musicality to the audience on stage
- Low, wide and bold silhouette asserts its potential

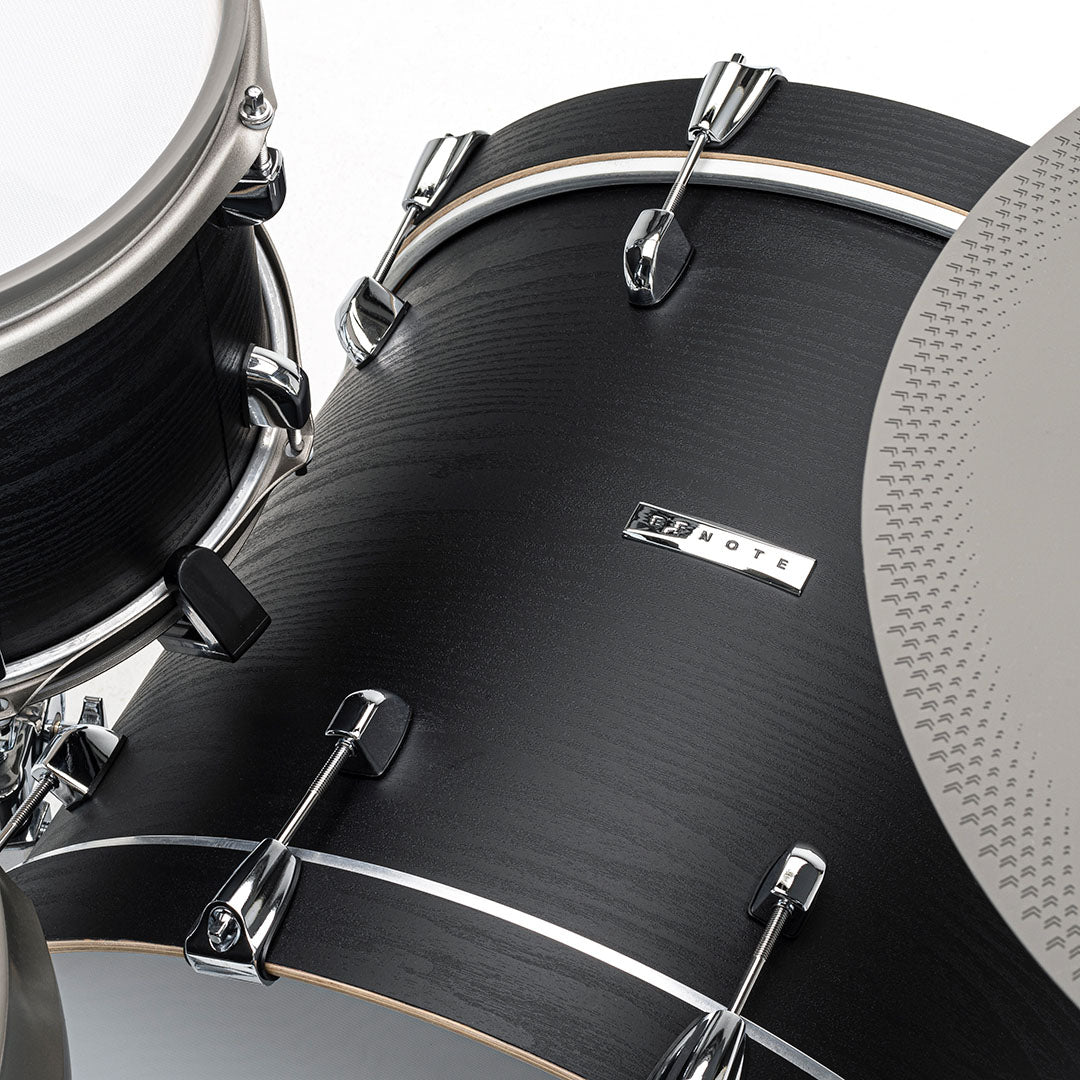

- Dignified black oak-ish finish
- Realistic swaying of full-sized cymbals that visualize its sound
Package includes Artesia hardware - drum & cymbal stands, hi-hat stand, single bass drum pedal, drum throne and sticks.
Drives Your Creativity
- Specially full-expanded based on EFNOTE 7
- Full-sized 5-piece shell and 5-piece cymbal set
- 360° flat sensing with multi-sensor technology
- World's first STAK™ 17" FX cymbal
- Player centric design

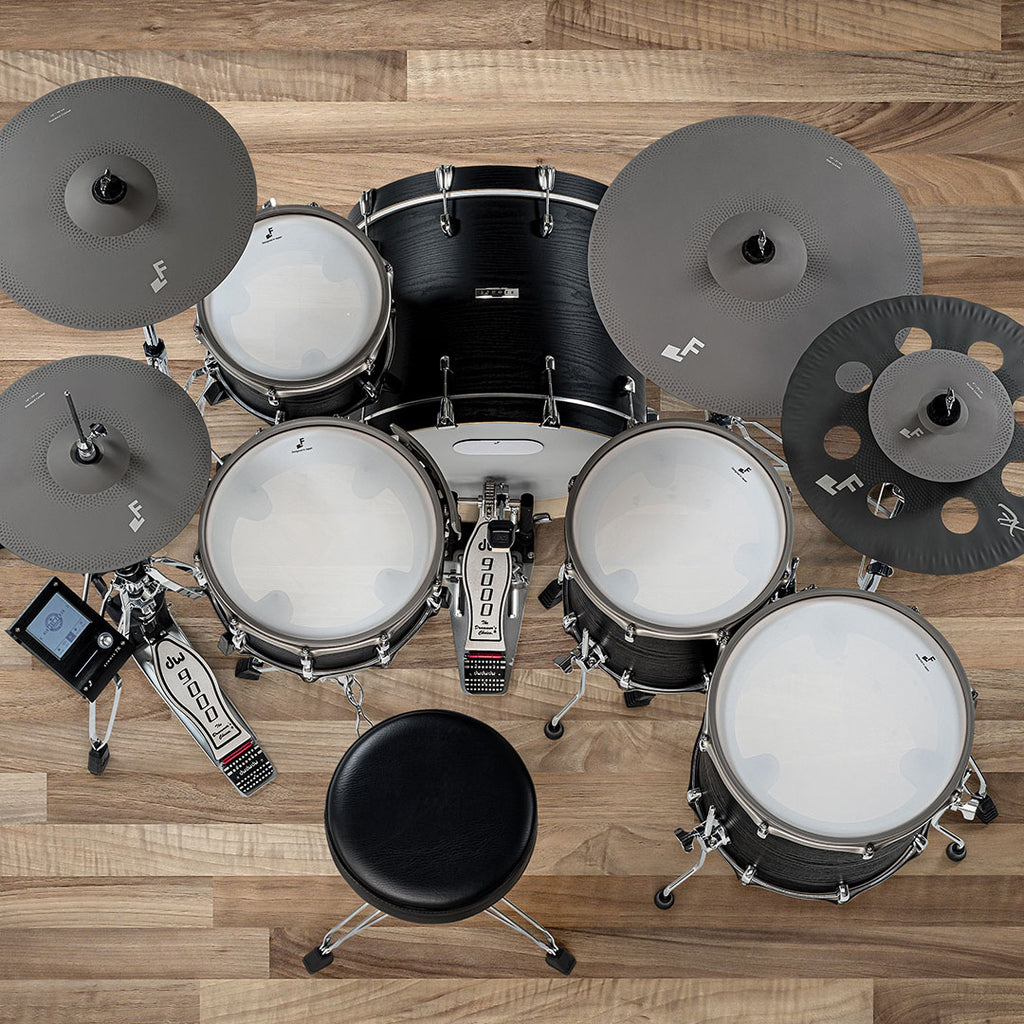

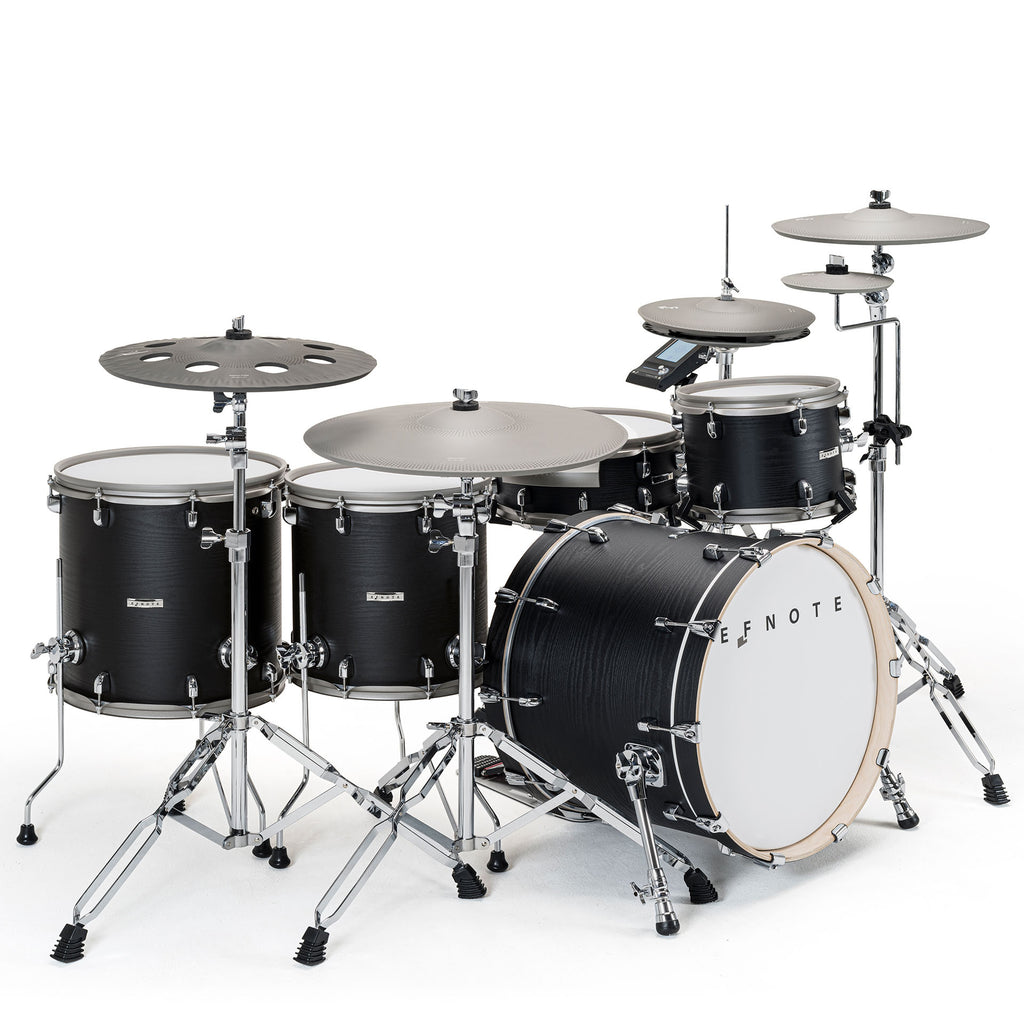

Tradition and Innovation
Modern but classic setup with:
- 1x basket stand mounted tom
- 2x floor tom
- 1x holed effect cymbal
- 1x crash cymbal
- 1x splash cymbal
Portrays Textures of Vintage Drums
- Good old collector's drum sets are newly recorded for EFNOTE 7/7X
- Contains attack and eKick elements that can be layered to enhance the sound
- Dedicated remastered acoustic drum sounds
Drums & Cymbals

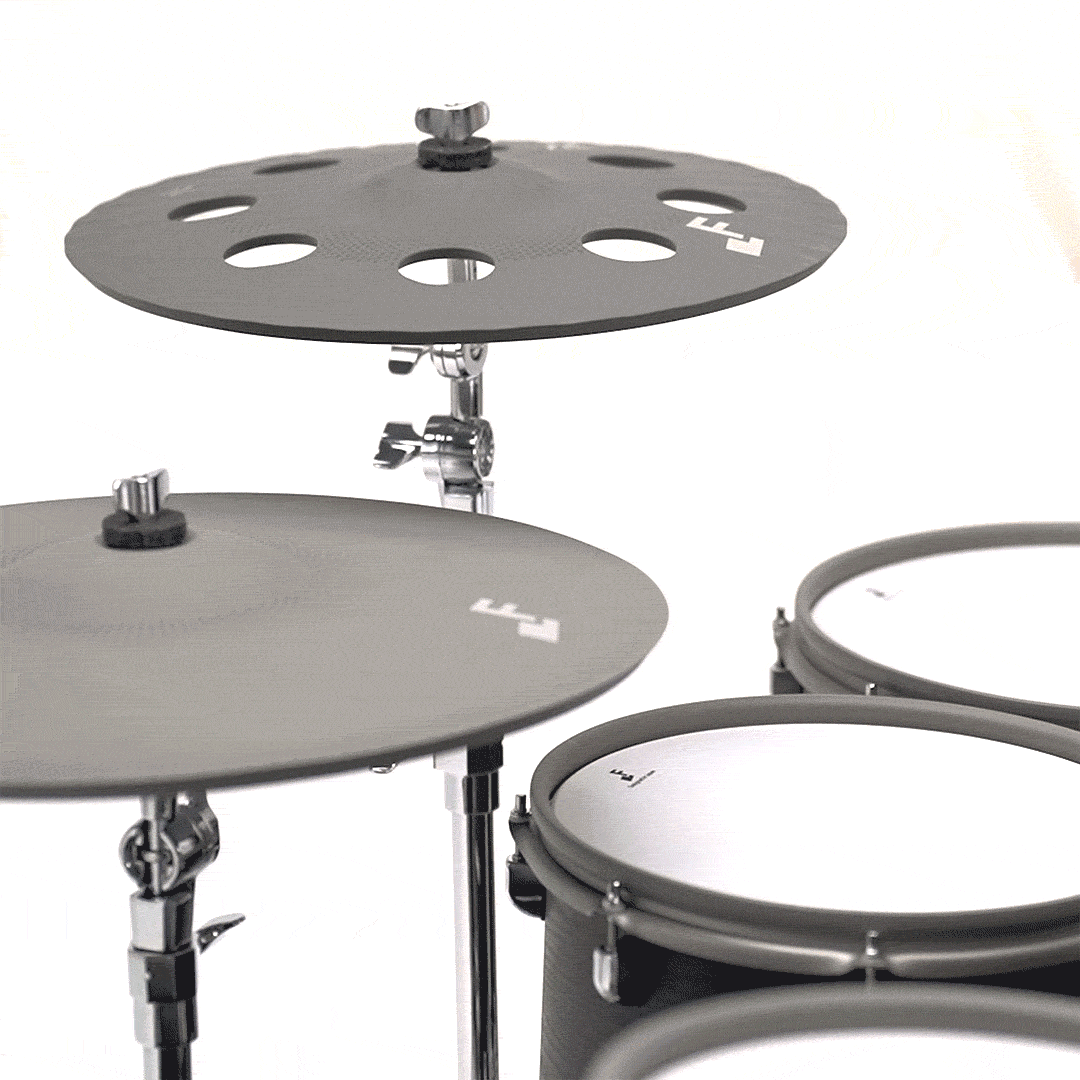

17" FX Cymbal - Real-Feel
- Light touch and real wobbling
- 360° flat sensing
- Special surface design with dedicated dark-gray color and hammered texture

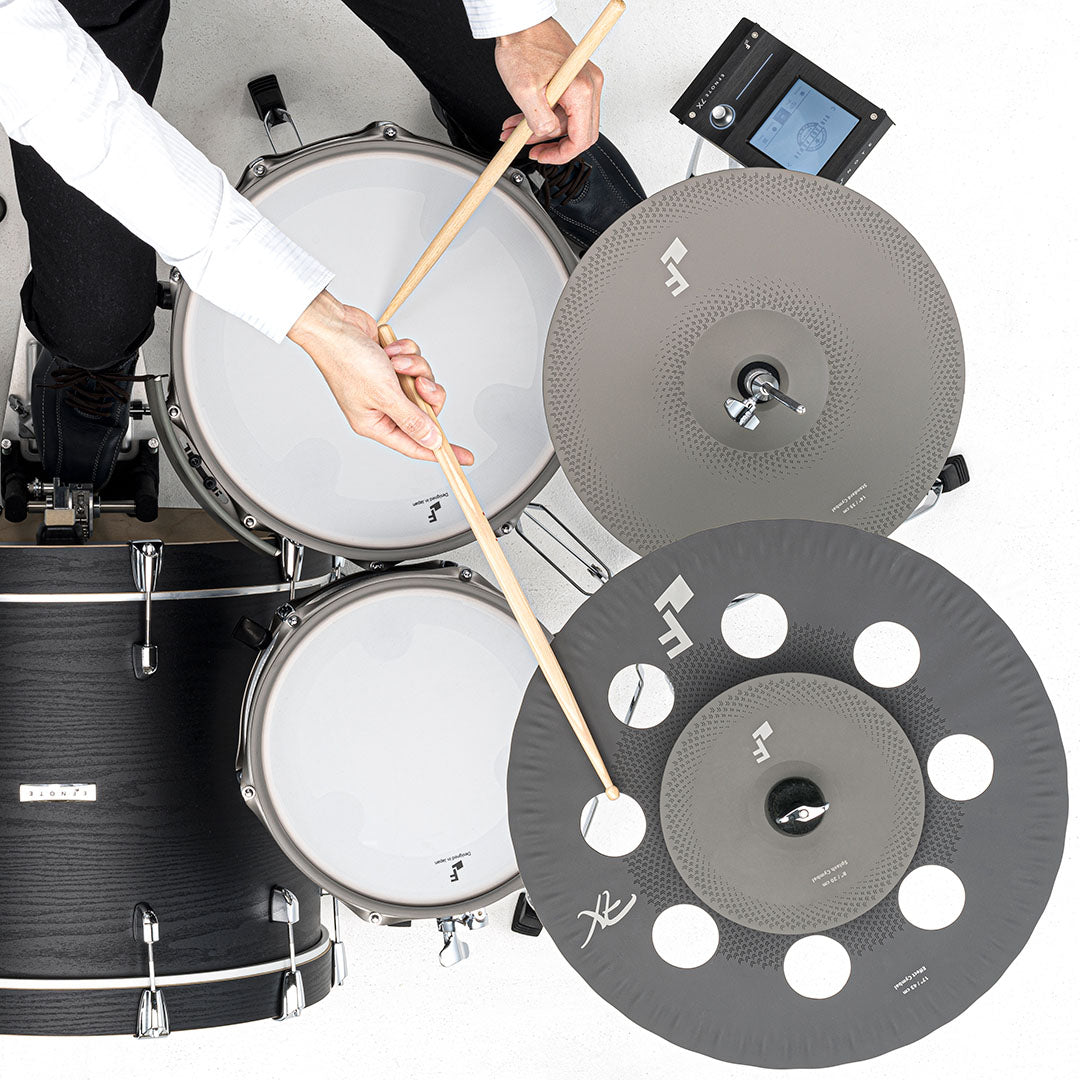

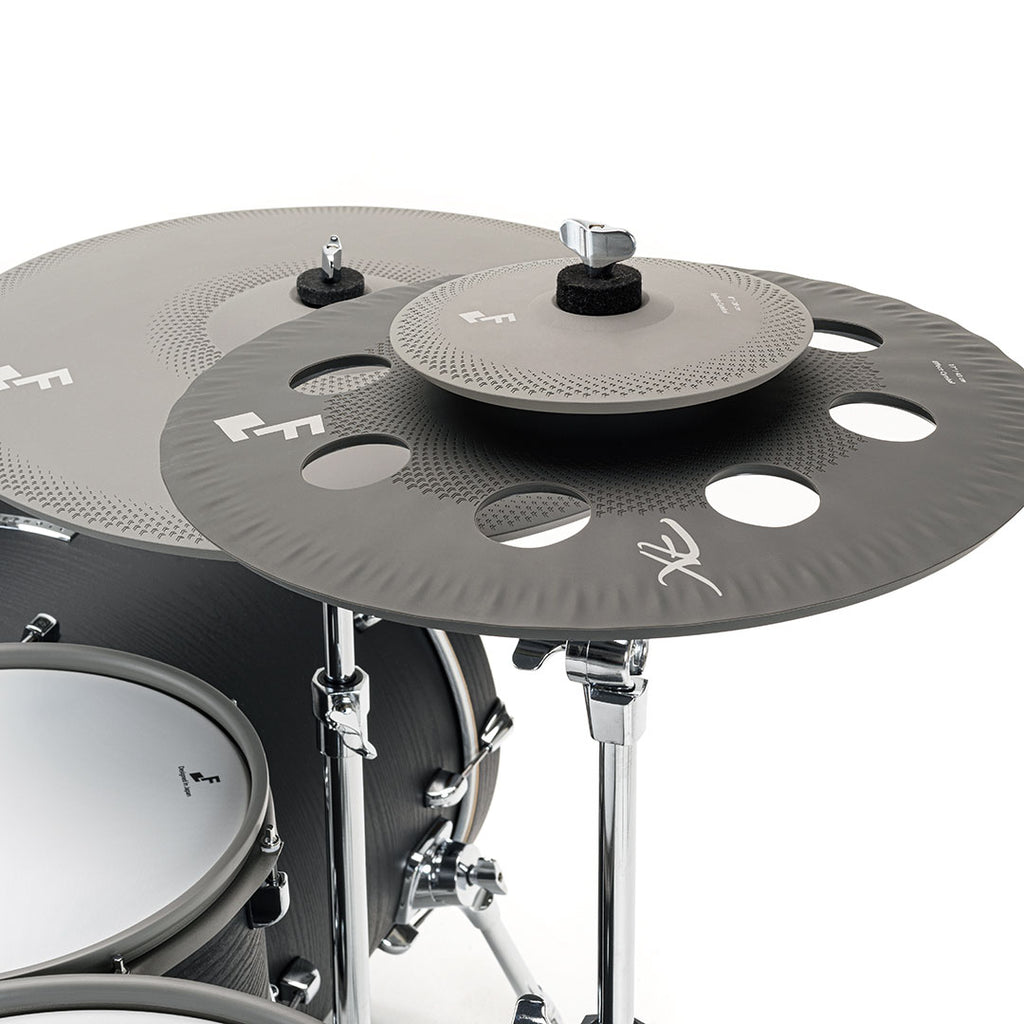

17" FX Cymbal - Stackable
- World's first STAK™ mount design enables stacking electronic cymbals
- In the EFNOTE 7X configuration, the 8" splash cymbal can be stacked on the 17"

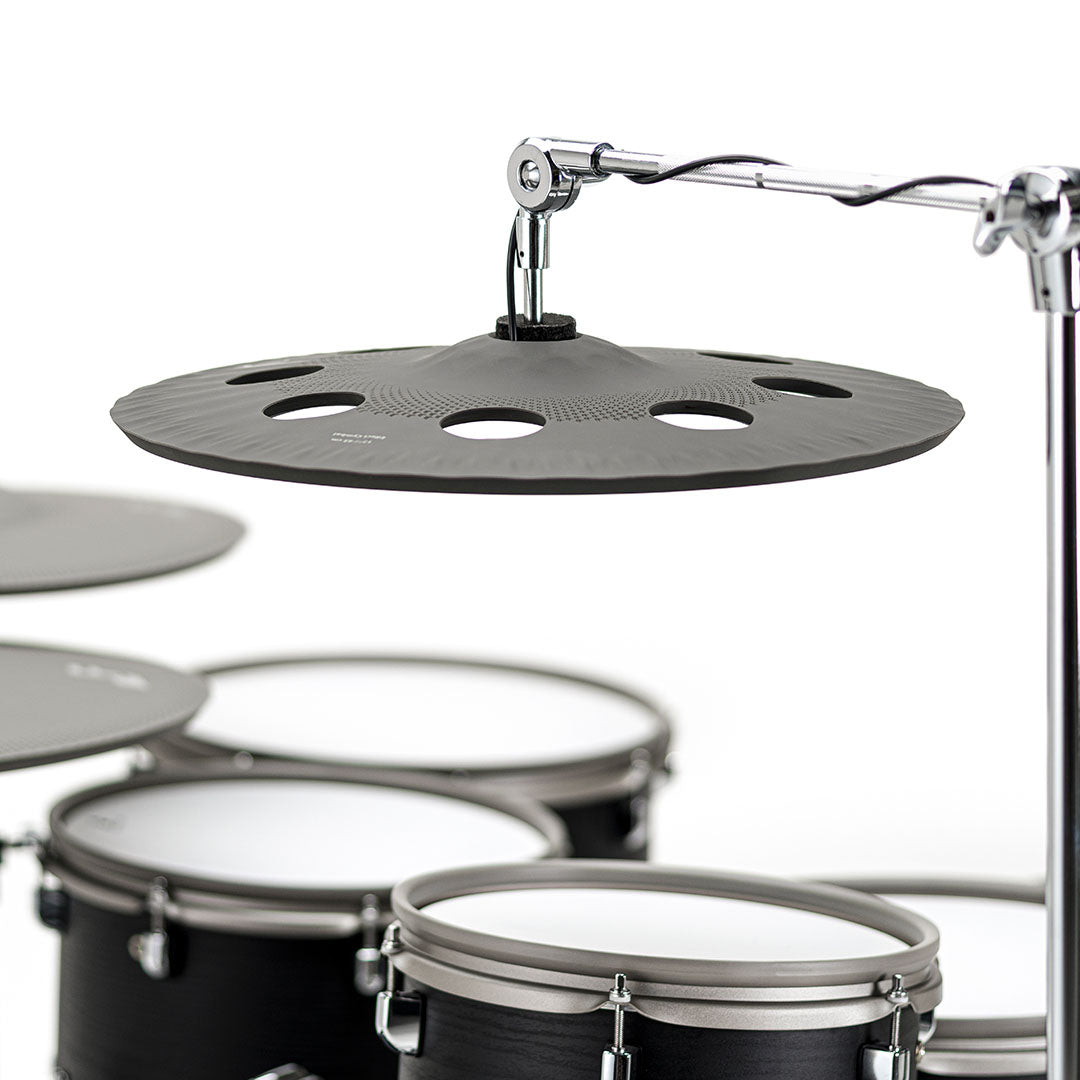

17" FX Cymbal - Suspendable
- STAK™ also provides a suspended cymbal setting with clean wiring
20" Ride Is Here!
- The 20" diameter provides slow wobbling of edge and the quick response of bow/cup
- Multi-sensored 360° play/choke area
- 360° free-swinging design
- Responsive thin edge
- Hammered texture surface

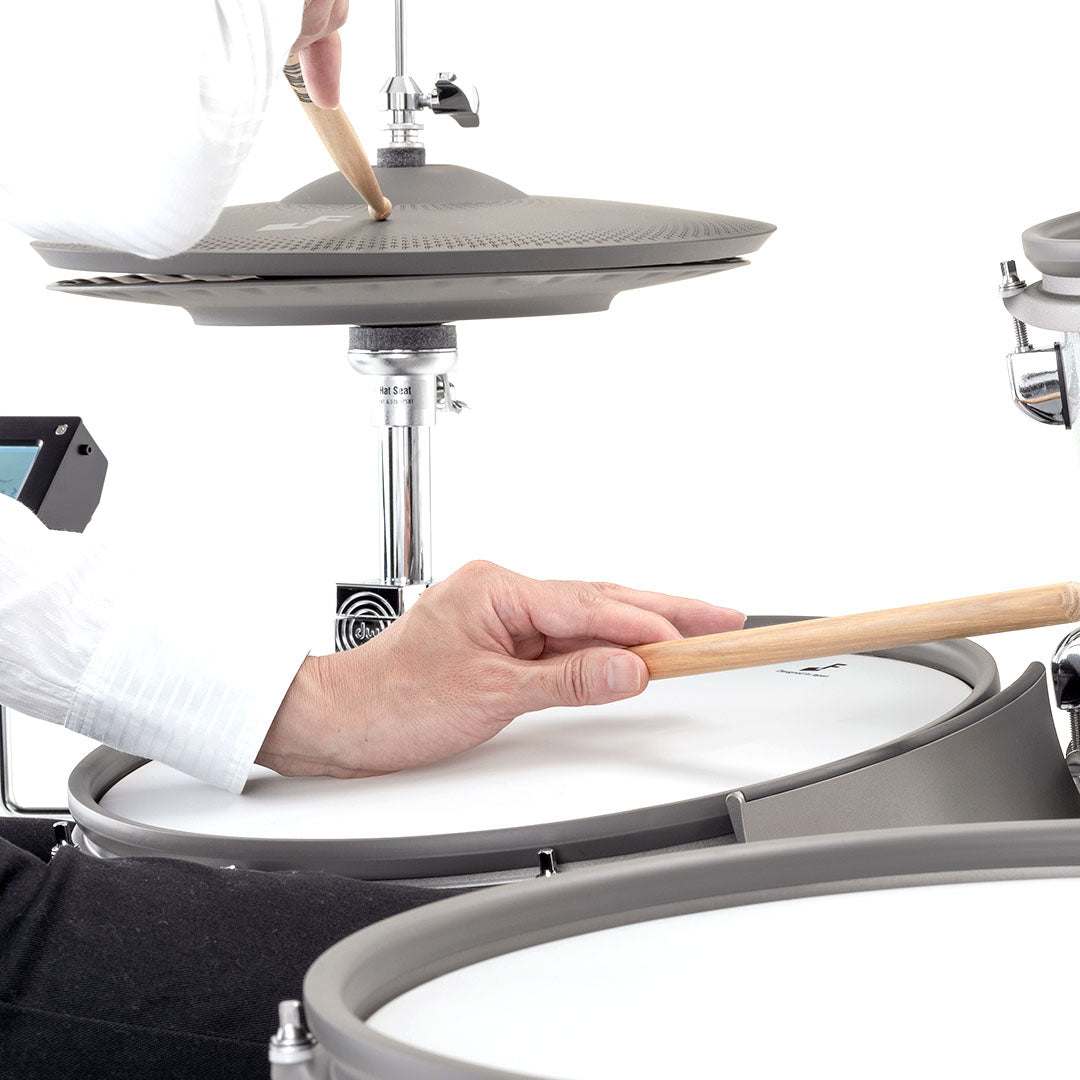

Finest Hi-Hat Cymbals
- 14" top/bottom cymbals
- World's first multi-optical sensing to capture the motions in 3D
- Tru-Motion™ technology for expressiveness leap
- 360° free-swinging top/bottom cymbal design
Beautiful Cymbal Surface
- Elegant warm-gray and refined dark-gray (17" FX) surface with fine engravings
- Clean silicone rubber surface that is resistant to drumstick marks

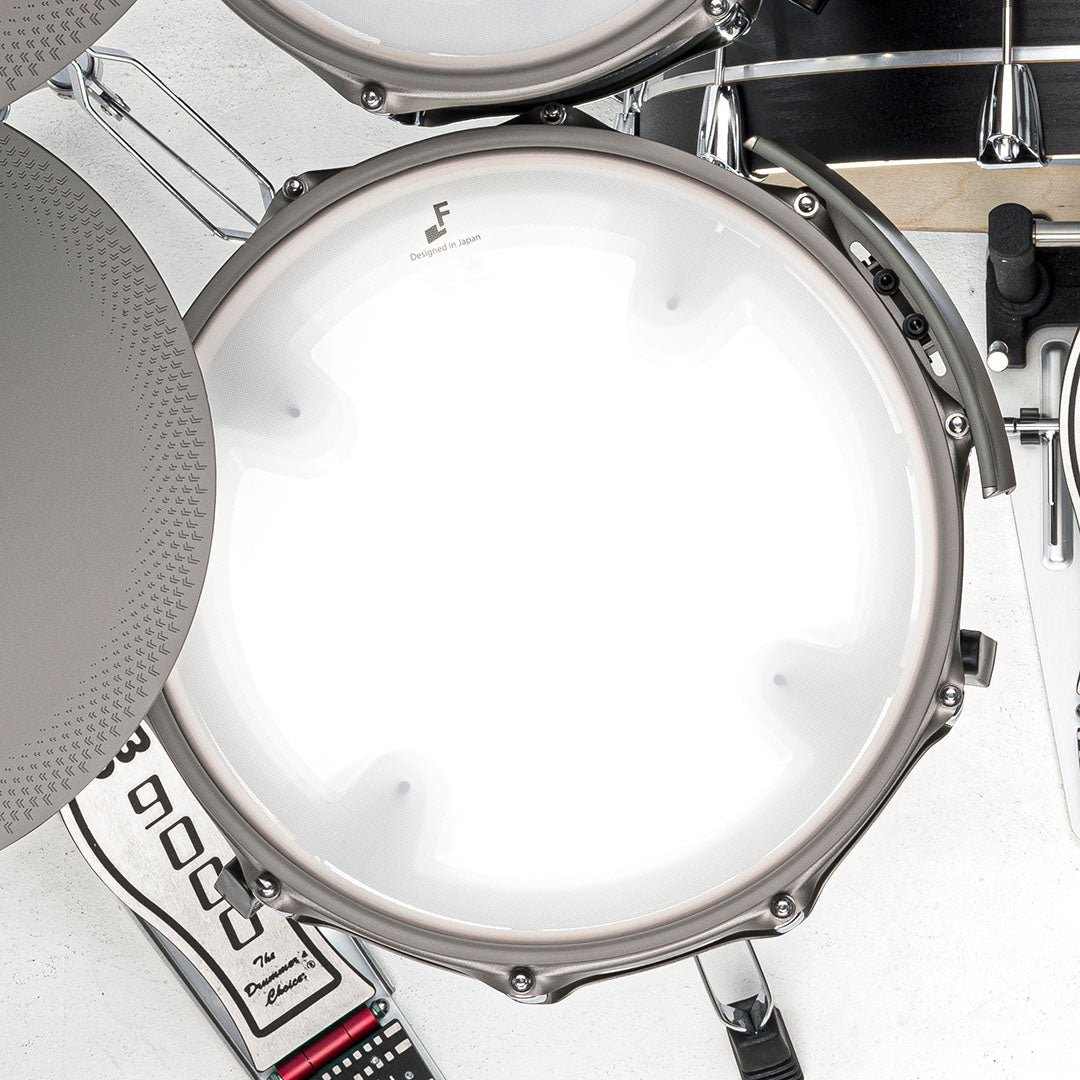

9-Sensor Snare Drum
- 14 x 5.5", 10 lugs, birch wood shell, 2ply mesh drum head
- Multi-sensor for hotspotless and high-resolution sounding
- High head tension tuning available
- Wide and adjustable side-rim
Independent Side-Rim
- Easy, intuitive and reliable
- No switch operation required
- Elegant arc design

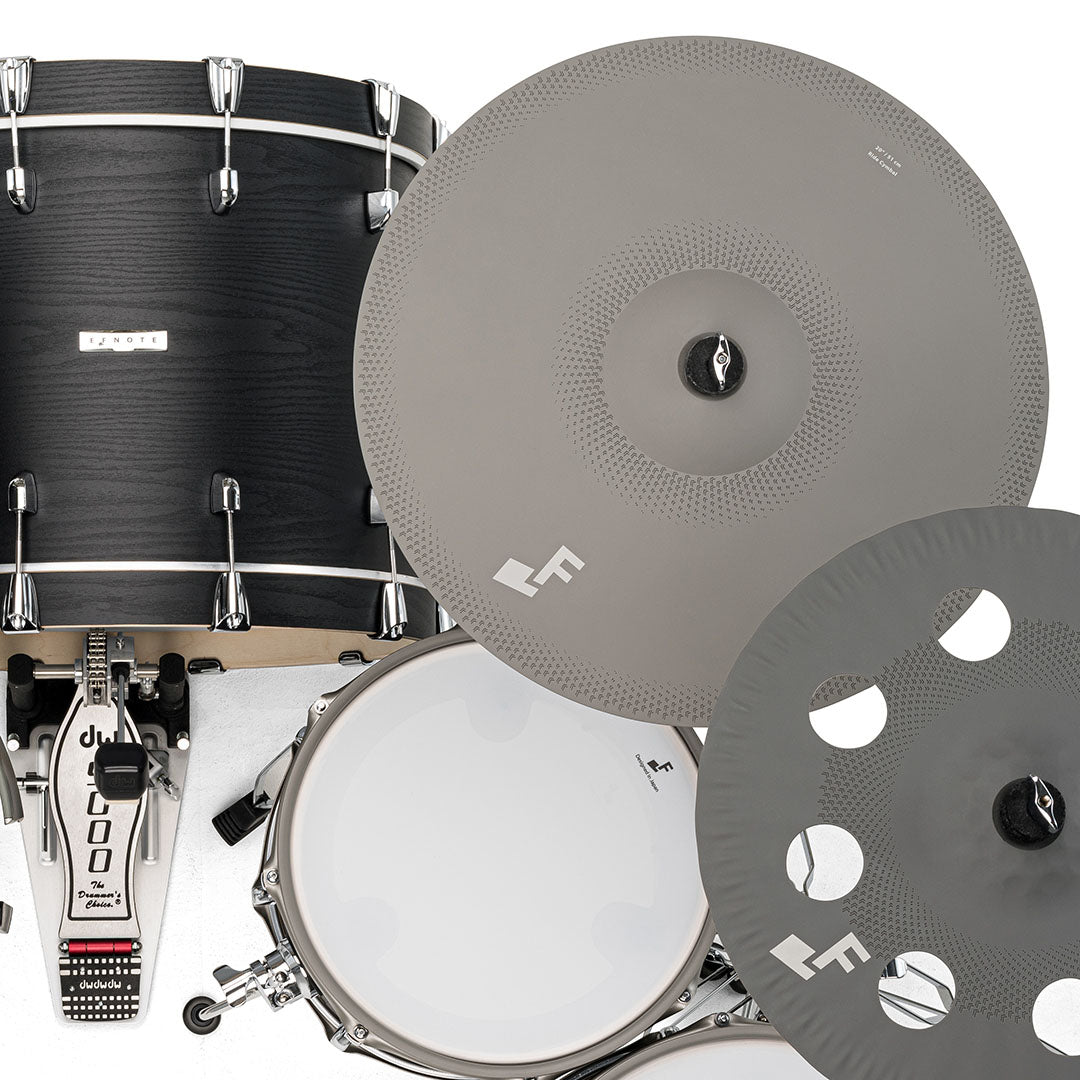

20" Kick, Unwavering Confidence
- 20 x 15", 10 lugs, birch wood shell, 2ply mesh drum head
- Props the whole set at the center of stage
- Stable multi sensing for single/double beater(s)

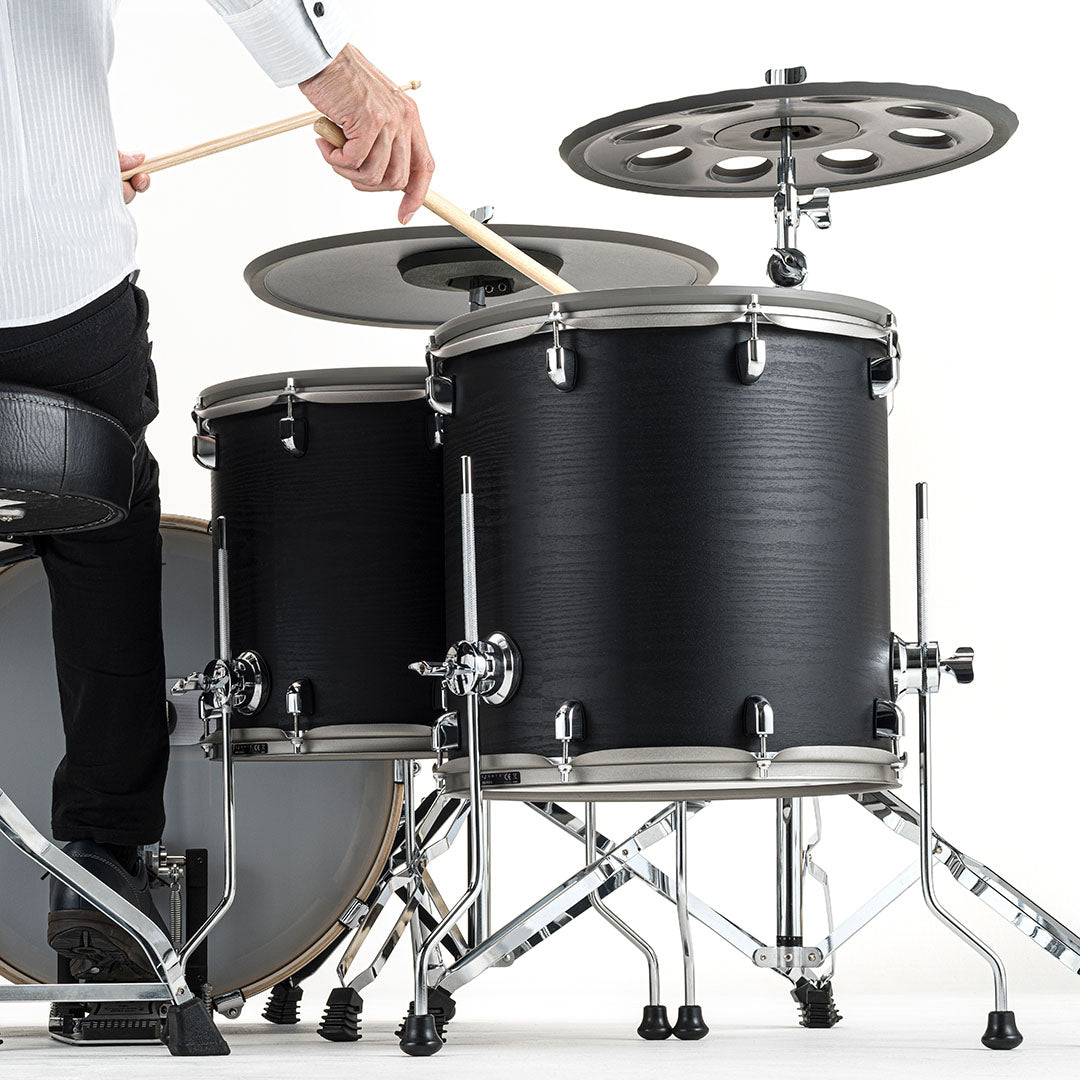

Modern Two Floor Toms Style
- 13 x 13", 8 lugs / 15 x 15", 8 lugs
- Birch wood shells, 2ply mesh drum heads
- Multi-sensor for hotspotless and high-resolution sounding
- Low-rebound 2ply mesh drum head
- Low head tension tuning available
Sound Module
Ultra-Compact Sound Module
- Ultra-small form factor with uncompromised features
- Metal chassis and aluminum finish
- High quality DAC and audio circuit
- High power headphone amplifier
- Touch screen intuitive user interface
ELISE™ Sensing Processor
- Capturing drummer's intentions from each stroke
- Low latency, wide dynamic-range, consistent and stable sensing
- Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads
Full-Scale Acoustic Sound
- Full stereo acoustic drum/cymbal samples recorded by EFNOTE
- Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
- Raw sound without resynthesis
For Training
- Multi-function metronome with beat LED indicator
- Built-in metronome speaker for daily training without headphones
- On-board drum recording function (15 tracks)
- Stroke Analyzer
- Rhythm Box feature provides over 90 basic drum beats
For Recording
- USB 8-ch individual audio outputs with Mac / Windows (ASIO)
- USB 2-ch audio inputs for playback
- Analog 4-ch audio outputs
- USB MIDI in/out with individual MIDI channels
- MIDI output (5-pin DIN)
For Small Gigs
- Setlist feature enables you to configure kit order with tempo for each song
- Kick and Snare can be output individually with analog 4-ch outputs
- Click and Audio-In can be assigned only for headphones
- High-power headphones output
- MIDI output (5-pin DIN)
Stroke Analyzer
- "Stroke Scope" displays your strike points on time-line
- "Accuracy Score" estimates your strike accuracy
Sound Edit
- Tuning, Muffling, 2-band EQs for each pad
- Pad layer function can overlay two sounds
- User Inst Library enables you to store 128 customized instruments
- On-board reverb
- Dedicated level control screen
Flexible Audio Routing
- 10-ch output buses
- Flexible output routing for each pad
- Output assignable click
- Output: 4-ch analog / 8-ch USB
- Input: Analog / Bluetooth / 2-ch USB
Bluetooth®
- Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
- Bluetooth MIDI
- EFNOTE Tools App for control remotely
- Backup, restore, and share your favorite drum kits with your smartphone
- Visit the official Kit Library to get new drum kits
- Sound level balance can be adjusted remotely
